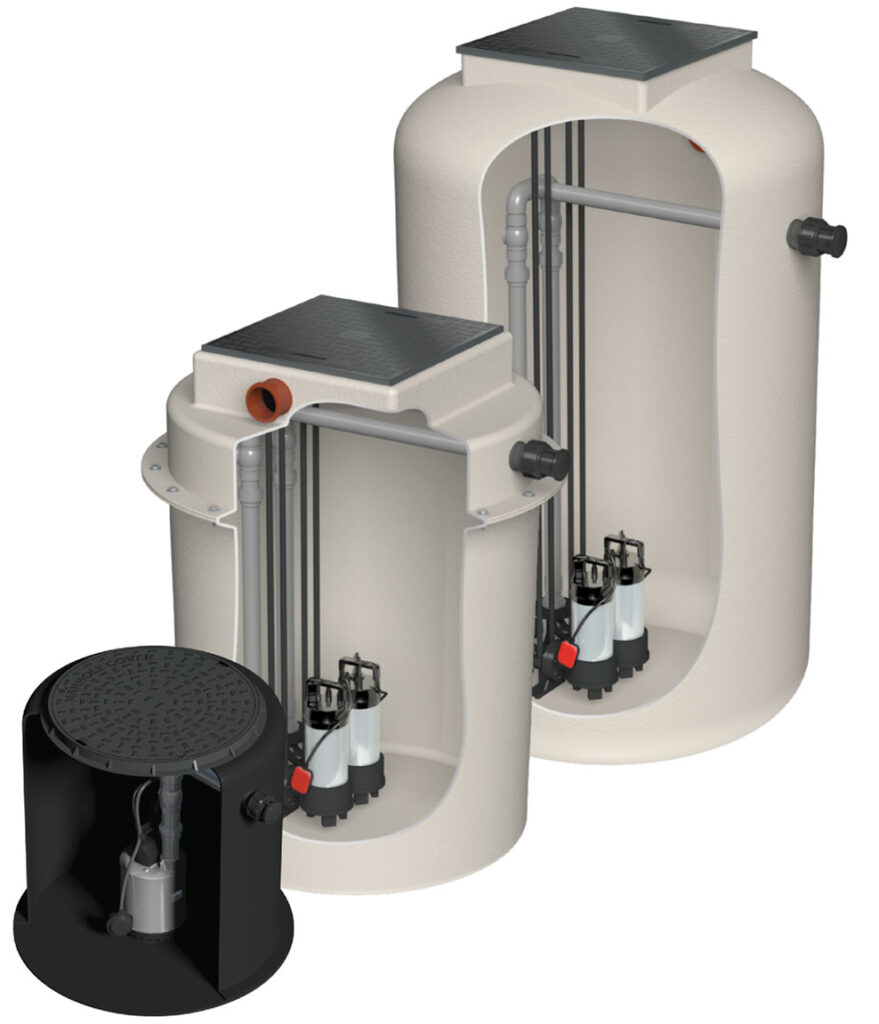

SUMP2DRAIN pump stations

SURFACE AND FOUL WATER PUMP SOLUTIONS

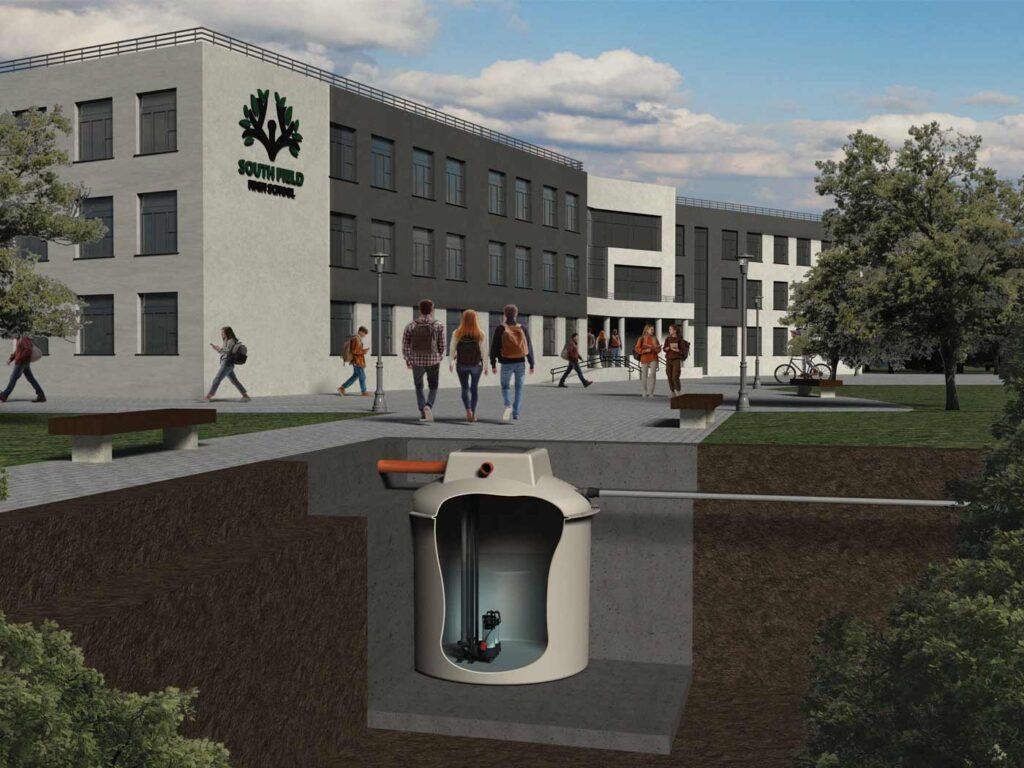

Marsh SUMP2DRAIN pump stations provide a convenient solution when gravity drainage is not feasible on-site. In these situations, waste from the property flows into an underground storage chamber, which is then pumped to the main sewer. These packaged pump stations are versatile, handling both foul water (sewage) and surface water applications.

Each pump station arrives on-site as a complete package, including all internal pipe work and a drainage pump. For added safety, we recommend installing a high-level alarm (available as an optional extra). All systems adhere to BSEN752-6 standards.

Applications

The Marsh ‘S’ (Surface water) models are capable of handling effluent, surface and ground water. The Marsh190S model can also manage grey water from showers and wash-hand basins, but it is not suitable for foul water from a W.C.

The Marsh ‘F’ (Foul water) models handle sewage from extensions, garden rooms, small conversions and for pumping sewage to septic tanks, sewage treatment plants or to the mains sewer.

Features

Easy installation
The Marsh Sump2Drain range is manufactured from high-grade MDPE and is small and compact for easy installation. Unique ‘keying-in’ lip assists anchoring in concrete.

Versatile applications
Removes grey water from final effluent in sewage treatment plants, drains, cellars and basements, and handles sinks, showers, kitchens and dishwashers. Handles sewage from extensions, garden rooms, small conversions and for pumping sewage to septic tanks, sewage treatment plants or to the mains sewer.

Reliable storage
Provides 24-hour pumping capability and adheres to BSEN752-6 standards.

Readily available
The units are in stock and all necessary components are included. Surface water systems feature a submersible
pump with 10mm solid handling pump. Foul water systems offer a submersible pump with 50mm solid handling pump.

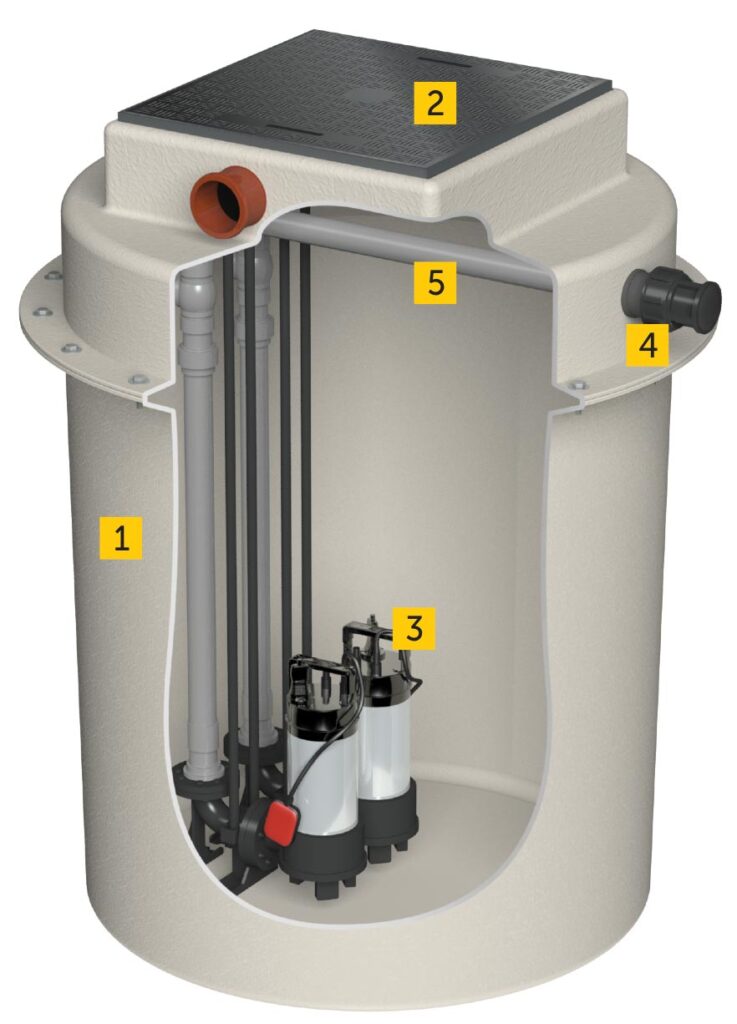

Key components

1. Heavy duty MDPE shell
2. 450mm access cover
3. Single free-standing pump
4. 32mm or 63mm pumped outlet
5. Delivery pipe

Illustrated example: Marsh300S-10 Sump2Drain pump station

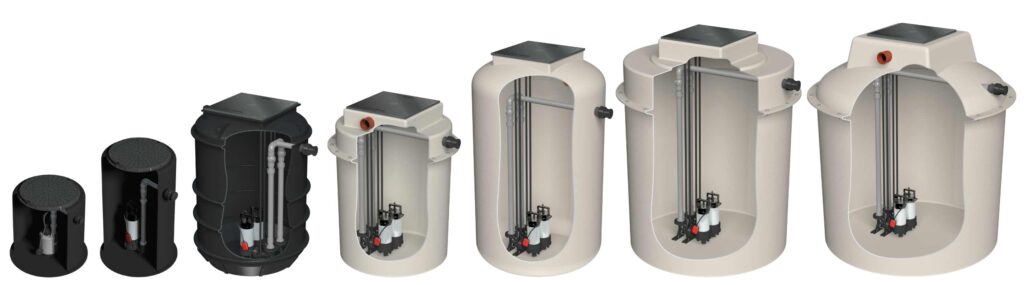

Specifications

Specifications table
Model	Application	Pump options	Diameter	Depth	Total storage	MDPE outlet Ø	Outlet invet	Power kw
MARSH190S-6	Surface water	6m Head	600	600	190	32/50	tbc	0.25
MARSH190S-10	Surface water	10m Head	600	600	190	32/50	tbc	0.55
MARSH300S-6	Surface water	6m Head	600	1000	300	32/50	tbc	0.25
MARSH300S-10	Surface water	10m Head	600	1000	300	32/50	tbc	0.55
MARSH440S-6	Surface water	6m Head	600	1500	440	32/50	tbc	0.25
MARSH440S-10	Surface water	10m Head	600	1500	440	32/50	tbc	0.55
MARSH590S-6	Surface water	6m Head	600	2000	590	32/50	tbc	0.25
MARSH590S-10	Surface water	10m Head	600	2000	590	32/50	tbc	0.55
MARSH190F-6	Foul water	6m Head	600	600	190	63	tbc	0.37
MARSH190F-10	Foul water	10m Head	600	600	190	63	tbc	0.75
MARSH300F-6	Foul water	6m Head	600	1000	300	63	tbc	0.37
MARSH300F-10	Foul water	10m Head	600	1000	300	63	tbc	0.75
MARSH440F-6	Foul water	6m Head	600	1500	440	63	tbc	0.37
MARSH440F-10	Foul water	10m Head	600	1500	440	63	tbc	0.75
MARSH590F-6	Foul water	6m Head	600	2000	590	63	tbc	0.37
MARSH590F-10	Foul water	10m Head	600	2000	590	63	tbc	0.75

The dimensions given on this page are for guidance only
For precise tank sizes and configurations, please contact Marsh Industries.
All dimensions in mm.
Due to production processes, dimensions of finished units are within a tolerance of +/-2.5%.
Tank products and configurations shown for illustrative purposes
