Pump stations

Marsh WellWater:SeineTM

Marsh WellWater:Seine<sup>TM</sup>

WellWater Seine pump stations are Ø1.1m vertical units, available in 2200mm and 2600mm heights with storage capacities of 1735 litres and 2050 litres respectively. Each system is supplied as a complete unit with either single or twin free-standing submersible pumps and high[...]

Marsh WellWater:HudsonTM

Marsh WellWater:Hudson<sup>TM</sup>

WellWater Hudson pump stations are Ø1.2m vertical units, available from 2000mm to 3500mm heights with storage capacities ranging from 2170 litres to 3860 litres. Each system is supplied as a complete unit with either single or twin submersible pumps with guide rails[...]

Marsh WellWater:NileTM

Marsh WellWater:Nile<sup>TM</sup>

WellWater Nile pump stations are Ø1.8m vertical units, available in 3000mm and 4000mm heights with storage capacities of 7250 litres and 9800 litres respectively. Each system is supplied as a complete unit with either single or twin submersible pumps with guide rails[...]

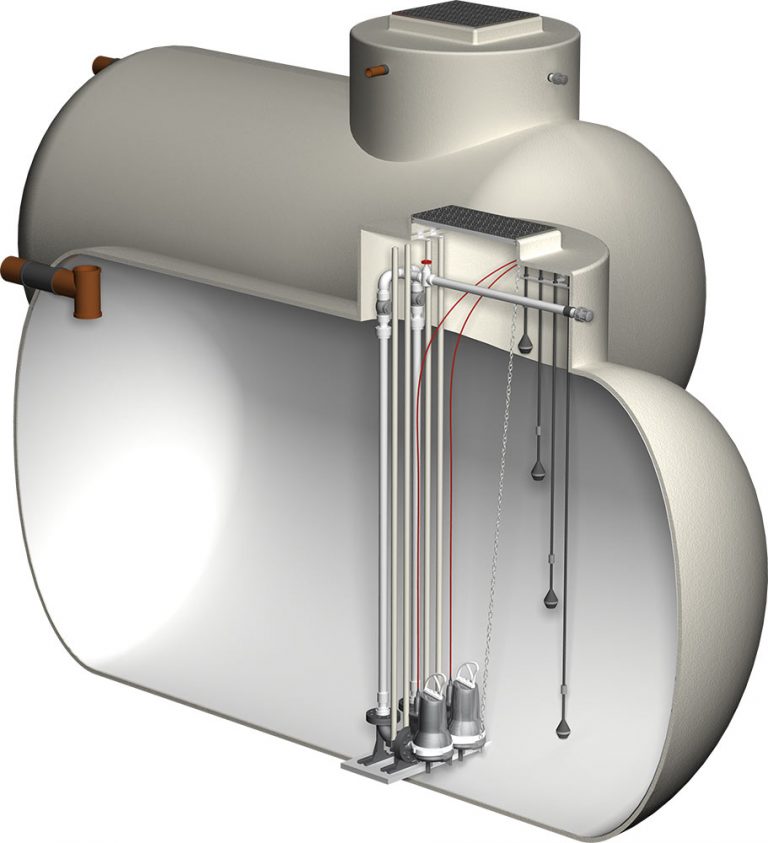

Marsh WellWater:AmazonTM

Marsh WellWater:Amazon<sup>TM</sup>

WellWater Amazon pump stations are Ø2.5m horizontal units, available in storage capacities ranging from 7710 litres to 17500 litres. Each system is supplied as a complete unit with either twin submersible pumps with guide rails and high quality internal pipework/fittings as standard.[...]

Marsh WellWaterTM

The most comprehensive range of pump stations available in the UK

When discharge to mains is required, but to do so by gravity is impractical, a Marsh WellWater pump station will be needed.

Marsh pump station systems are usually bespoke. However there are several factors that play a role in identifying precisely the right tank sizes and type that are required for your project.

Marsh Industries’ system designers can work closely with you to identify all key requirements in accompaniment with Marsh Industries’ unique process design software, Gaia Sege.

Marsh WellWater pump station installation

Applications

The WellWater range of pump stations are suitable for water and wastewater treatment, effluent and sewage discharge as well as grinder applications in all domestic, commercial and industrial sites:

  • Agricultural water and wastewater
  • Biofuel systems
  • Commercial buildings
  • Domestic buildings
  • Food processing
  • Industrial boilers
  • Industrial wastewater
  • Industrial water treatment
  • Marine
  • Mining
  • Pharmaceuticals
  • Wastewater transport
  • Wastewater treatment
  • Water distribution
  • Water intake
  • Water treatment

Why specify a Marsh pump station?

  • Designed to British Standard European Norm’s:
    BSEN12050 for structural strength and water-tightness
    BSEN752 to comply with hydrostatic and electrical requirements
    BSEN752-6 for drain and sewer systems in outside buildings
  • Smooth internal walls and integral pump well improves pump efficiency and eliminates ‘dead spots’ which can lead to odours and septicity
  • Variable invert depths and orientations ­­­to suit individual site conditions
  • Pre-assembled pipework for fully automatic operation
  • Unique ‘keying-in’ lip on WellWater:Seine range assists anchoring into concrete surround

Pump options

Marsh uses market-leading submersible pumps throughout its WellWater range of pump stations to ensure maximum reliability and efficiency with minimal clogging or wear. Pump stations can be specified with single or twin free-standing pumps, or single or twin pumps with guide rails as illustrated below.

Note: Floats can be fitted directly to specific pump systems. Please contact Marsh Industries to discuss your project requirements.

Single free standing pump Single free-standing pump
Twin free standing pump Twin free-standing pumps
Single pump with guide rails Single pump with guide rails
Twin pump with guide rails Twin pumps with guide rails

Guidance notes

  • Where foul water drainage from a domestic property is to be pumped to mains the effluent receiving chamber should be sized to contain 24-hour inflow to allow for disruption in service, the minimum daily discharge being taken as 150 litres per person per day
  • For other building types the capacity of the receiving chamber should be based on the calculated daily demand of the water intake for the building, or when only a proportion of the foul sewage is to be pumped then the capacity should be based pro-rata
  • If the sewer is to be ‘adopted’ by a local water authority, please contact Marsh Industries as Sewers for Adoption (SFA) specification and additional local authority related criteria may apply
